This is the diagnostic tool used by Hino dealers for performing engine electronic diagnostics. Covers all models from 2005 thru 2010. Hino service manuals are recommended to assist you when using this tool. Factory service manual will show this procedure.

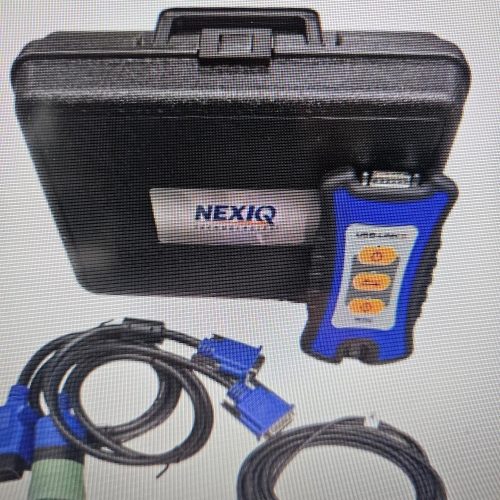

This tool is designed for the USA market. It has been used by our customers on the international market but we make no guarantees for its use non-USA. Photo is representative only.

Contents:

2005-2010 Hino DX (Diagnostic Explorer) Software
Communication Adapter
USB Cable
OBD-2 Cable

Features:
Aisin Transmission data viewing and diagnostics-2005-2010 Model Years

Display and Clear Diagnostic Codes
Display live data for diagnosis

Engine data viewing and diagnostics-2051-2010 Model Years

Display and Clear Diagnostic Codes
Display live data for diagnosis
Engines: J05 / J08

J05 & J08 Engine data viewing and diagnostics 2005-2010 Model Years

Display and Clear Diagnostic Codes
Display live data for diagnosis-specific data can be selected

Full Customization Capability
Perform Engine Diagnostics
Read & Clear Engine Codes
Turn on Engine Protection Shutdown System
Set Maximum Vehicle Speed
Set Maximum Cruise Control Speed
Set PTO idle speeds (fixed and variable)
Change Injector Calibration QR Code when replacing injectors
Supply Pump relearning when replacing SCV or supply pump
Complete DPF testing and regeneration capability
Built in Help Menus for troubleshooting specific diagnostics trouble codes

Note: ECM re-programming can only be performed by authorized Hino dealers.

Note: To read ABS codes the technician must read blink codes on dashboard. Blink test is triggered by pressing switch near data connector.

System requirements
Operating System: Windows 2000 or Windows XP Pro/Home with Administrator Privileges (Windows XP ME not Supported) Cannot use Vista or Win 7.
Microprocessor: 700MHz Pentium Minimum-best if 2.0 GHz or higher
RAM: 128 MB minimum-Recommended 256 MB or higher
Hard Disk: 20GB free space minimum
PC Port: USB
Display: 1024×768 pixel minimum
Internet Browser: Microsoft Internet Explorer 6.0 or higher
